STANLEY® FATMAX® X3G Multiline Laser Level, Green
FMHT1-77356
STANLEY® FATMAX® X3G Multiline Laser Level, Green

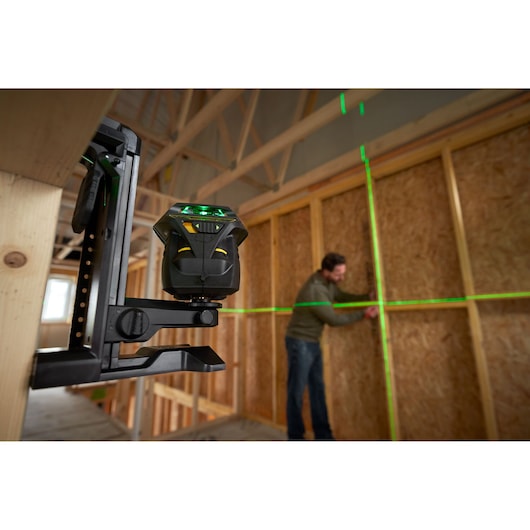

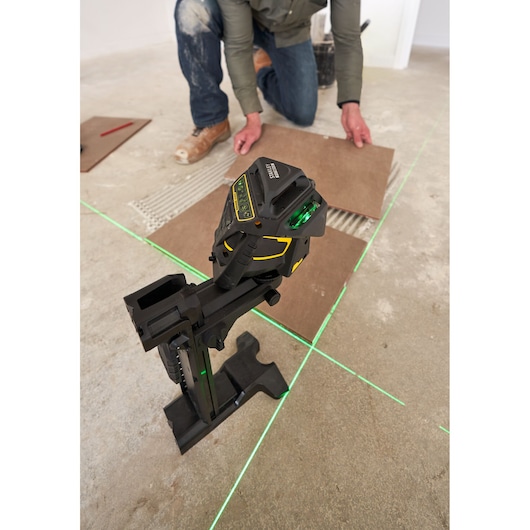

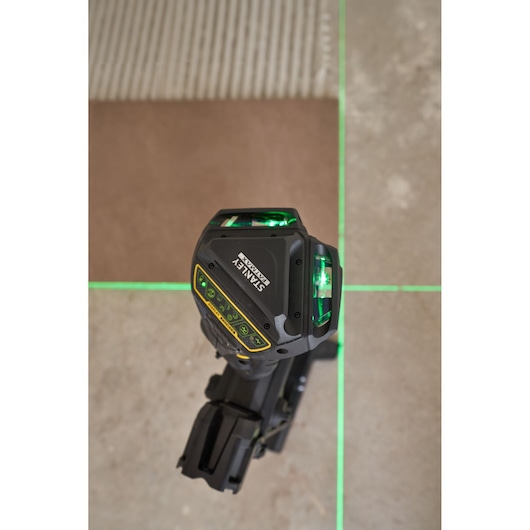

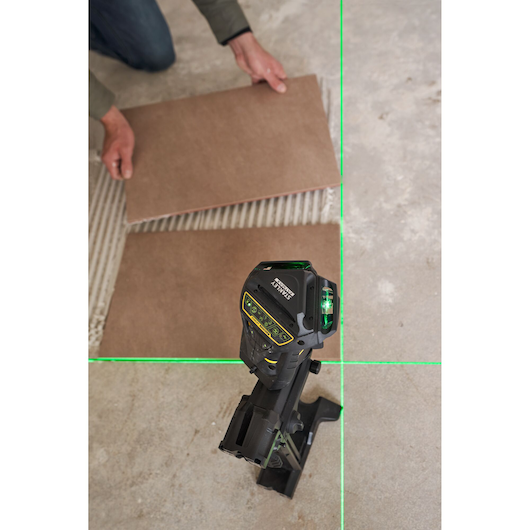

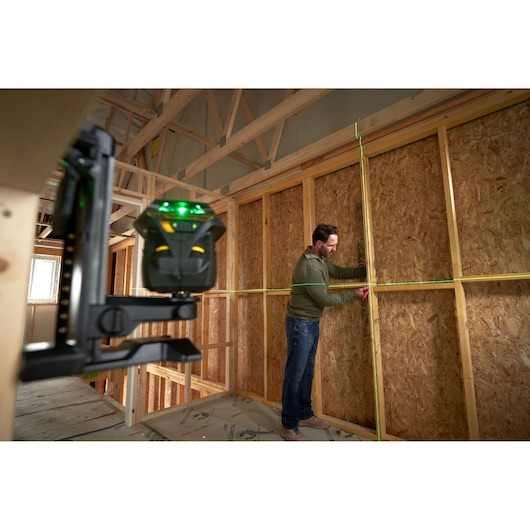

- 3 X 360 LASER BEAM PROJECTION: With 3 x 360° laser lines
- GREEN BEAM LASER: With a visible working range of up to 35M; up to 50M with a detector
- PRECISION AND ACCURACY: +/- 3mm at 10m
Additional Features

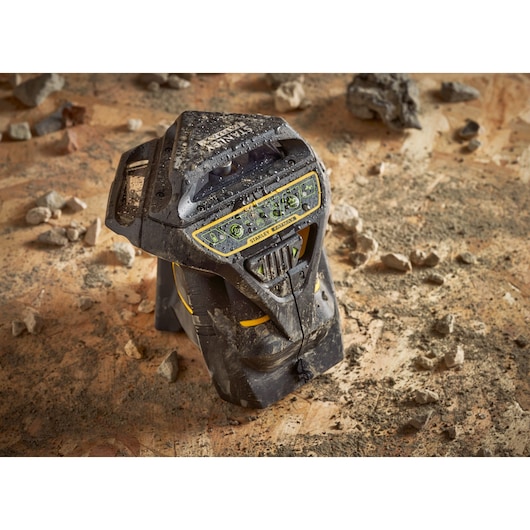

- IP RATED TO IP54: Protects against dust and water spray
- PENDULUM LOCK: For safe transportation
- SELF LEVELING: To +/- 4°
- PULSED BEAM MODE: Allows for use with a detector over an extended working range, up to 50m

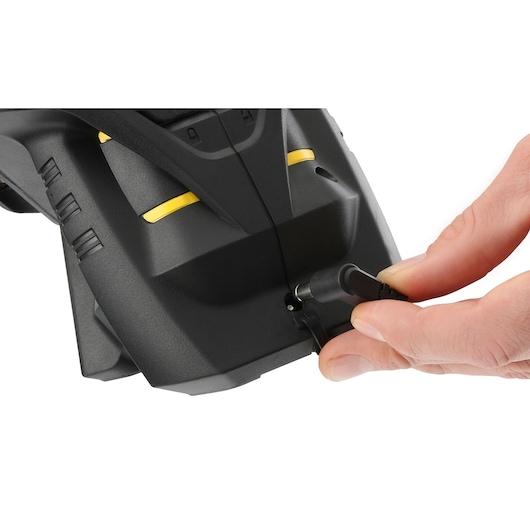

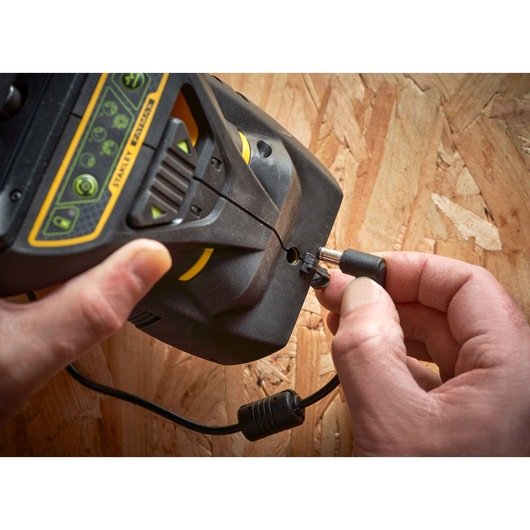

- RUNS ON: Internal Li-Ion battery

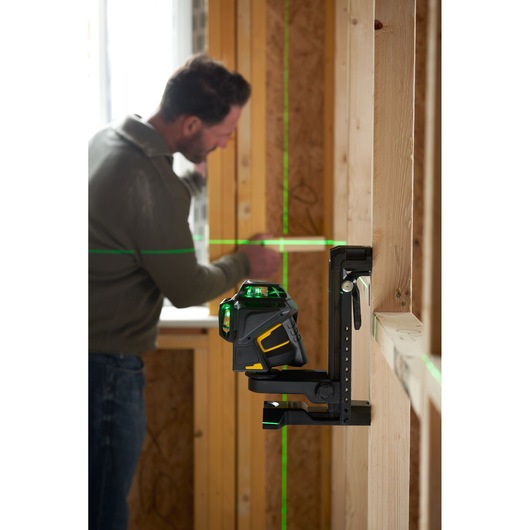

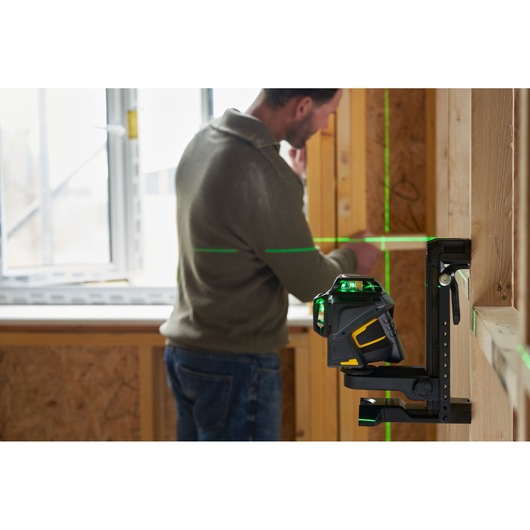

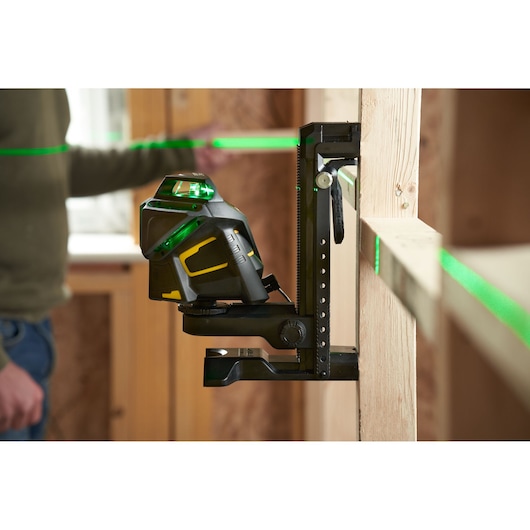

- INCLUDES: Carry Case, glasses, target card, charger and multi-bracket

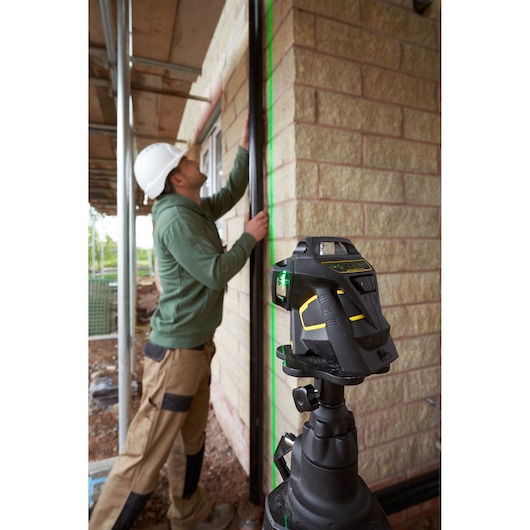

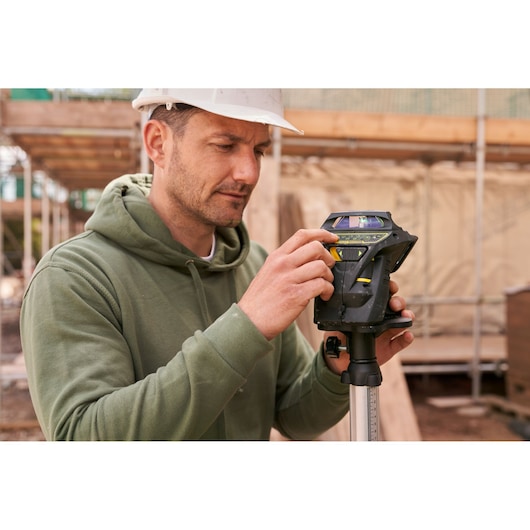

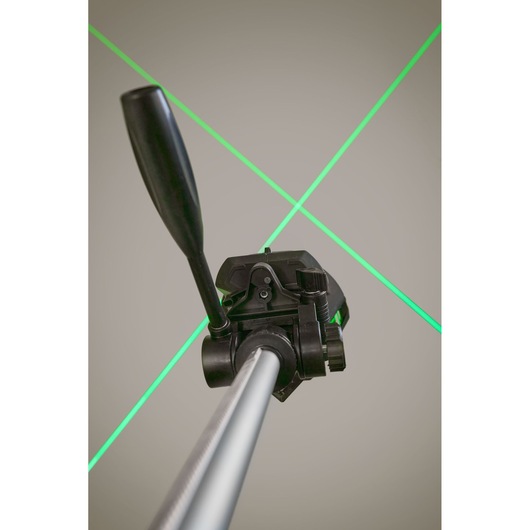

- TRIPOD THREAD: 1/4” & 5/8" thread allows the unit to be mounted to a tripod
Includes
- (1) Laser unit
- (1) Laser glasses
- (1) Laser grid
- (1) Charger
- (1) Target card
- (1) Green laser glass
- (1) Batteries

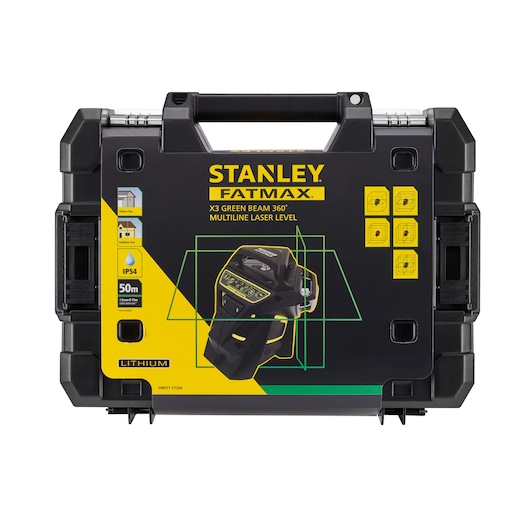

- (1) Protective case
- (1) Extra Plug
Specifications
|
Visible Working Distance - Radius [Metric]
|
35 m
|
|
Visible Working Distance - Radius [Imperial]
|
115 ft
|
|
Product Width [Metric]
|
35 cm
|
|
Working Distance with Detector [Metric]
|
50 m
|
|
Laser Accuracy
|
± 3mm @ 10 m
|
|
Materials Housing
|
Plastic
|
|
Laser Classification
|
2
|
|
Number of Beams
|
3
|
|
Working Range [Metric]
|
35
|
|
Battery Run Time Hrs.
|
24
|
|
Product Weight [Metric]
|
4.035 Kg
|
|
Product Height [Metric]
|
18 cm
|
|
Visible Working Distance [Metric]
|
35 m
|
|
Working Distance with Detector - Radius [Imperial]
|
196 ft
|
|
IP Rating
|
IP54
|
|
Battery Chemistry
|
Lithium Ion
|
|
Operating Temperature [Metric]
|
10 - 40 °C
|
|
Battery Source
|
Internal
|
|
Range
|
30 m and up to 50 m with detector (not included)
|
|
Line Diagram
|
3 x 360°
|
|
Product Weight Gross [Metric]
|
4.035 Kg
|
|
Working Distance with Detector - Radius [Metric]
|
60 m
|
|
Display Type
|
N/A
|
|
Laser Beam Color
|
Green Beam
|
|
Leveling Type
|
Self-leveling
|
|
Number of Pieces
|
6
|
|
Pulse
|
Yes
|
|
Product Length [Metric]
|
43.5 cm
|
|
Is it a Set
|
No
|
|
Packaging
|
Plastic Case
|
|
Number of Batteries Included
|
1
|
