STHT77616-0

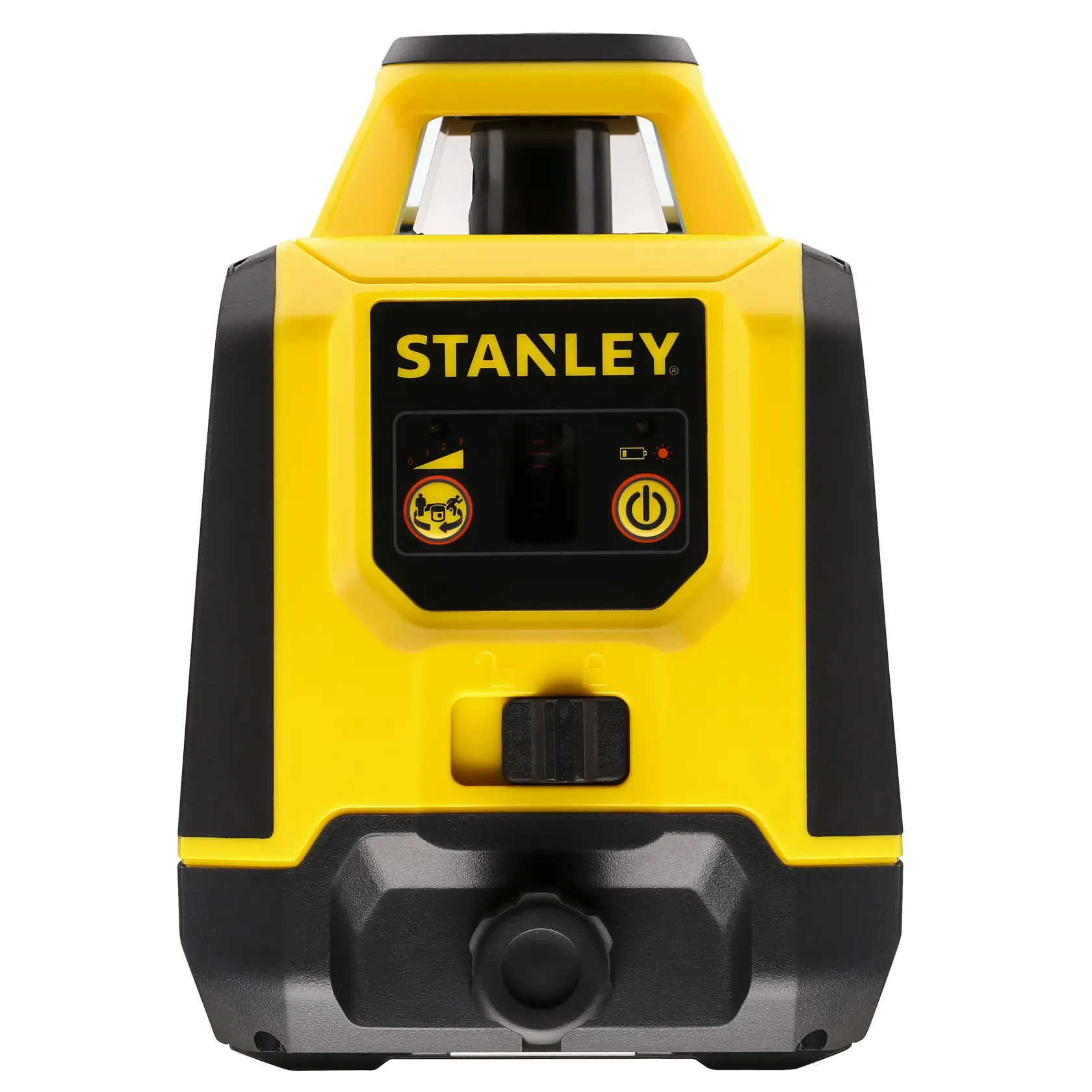

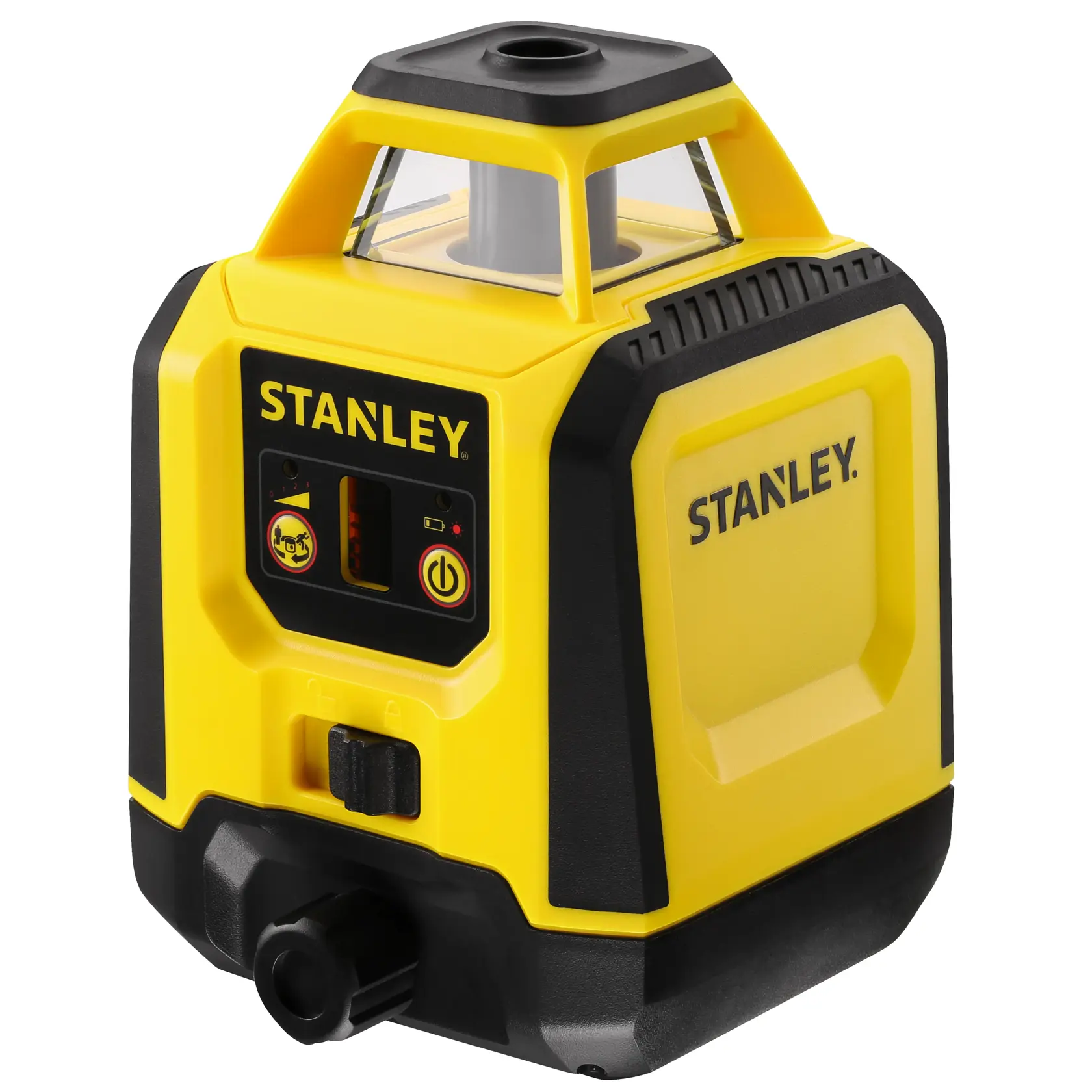

FATMAX® Horizontal Rotary Laser Level (red)
Product details
STANLEY® STHT77616-0 Self Levelling Rotary Laser Level is part of the laser range product family; this Rotary laser level has a range of 30 meters and 240 meters with the receiver with an accuracy of +/6 mm in 30 meters horizontal projection and +/9mm in 30 meters in vertical projection; its housing is covered with rubberized areas with IP54 dust and water seal for easy work; has a pendulum lock for safe transport and a 5/8" thread for use. with tripod; battery-powered; includes case, 2 D-type batteries, glasses, lens card, detector holder and Rotary laser detector.
- 30m working range, 240m with a detector
- Includes hard sided pouch, glasses, target, detector and detector clamp
- Accuracy of +/- 6mm 30m on horizontal line and +/- 9mm 30m on vertical line
- Projects 1 x 360° beam (one rotational spot) with plumb up
- Self-levelling to +/- 3° on horizontal line
- Plumb vial for vertical levelling
- 5/8" thread allows unit to be mounted to a tripod
- Rated to IP54 to protect against dust and water spray
- Runs on 2 x d alkaline batteries (supplied)
Product Type
Rotary Laser Level
Power Source
Corded
Total Number of Batteries
2
Measurement Accuracy
± 2.2mm @ 30 m
Laser Color
Red Beam
- (1) Rotary Red Beam Laser Level
- (1) Pair of Red Laser Glasses
- (1) Target
- (1) Detector
- (1) Hard Sided Pouch
- (1) Detector Clamp
- (2) D Batteries
- 2 Year Limited Warranty
